In the world of pallet racking solutions, there is one types of racking that stands supreme in terms of efficiency, automation and space utilization: the Automated Storage and Retrieval System (ASRS) Racking System. Far beyond mere static racks, ASRS is the dynamic, brainy core of today's high-throughput, high-precision warehouses and DCs. Here we look at why ASRS racking is such a powerhouse pallet racking solution.

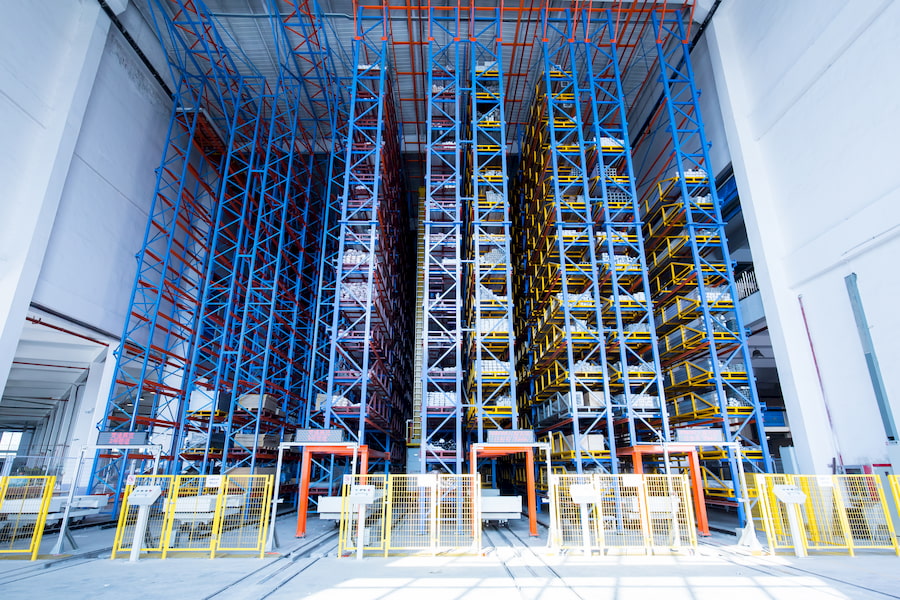

What are ASRS Racking Systems?

Essentially, an ASRS racking solution combines customised high density racking systems with state of the art automated technology and highly intelligent operating software. Instead of forklifts and people driving up and down aisles, the asrs racking system relies on:

High Density Racking Structure It's usually much taller and deeper than normal racks (also 100+ feet high). The aisles in the storage racks are very narrow (sometimes only inches wider than the load), as a means to maximize the cubic storage. Designs include:

Unit Load ASRS: Full pallet or large container loads are handled by overhead cranes which operate along aisles contiguous with the racking system.

Miniload ASRS : Used for smaller cases or totes by employing the robotic shuttles inside the rack structure.

Shuttle Systems: Carts which drive on rails in a certain level of the racking.

Robotic” Machinery: Cranes (unit load) or robotically actuated shuttles (miniload/shuttle systems), and robotic arms dynamically travel down the racking aisles to deposit and pick product.

Control System: The head of the operation. WMS and WCS systems are well-integrated with the ASRS. They stock inventory, optimize storage locations (taking into account turnover, SKU affinity, and so forth), order tasks, and steer the machines around with laser accuracy.

The inherent merits of ASRS racking solutions:

Optimized Space Utilization: By removing wide aisles and taking advantage of vertical space, ASRS can typically achieve 2 or 3 times the storage density in the same warehouse footprint as pallet racking. This is important, particularly in high-value property locations.

Sky-High Efficiency & Speed: Automated machines operate 24/7, picking and storing loads in seconds, resulting in a stark reduction of order cycle times. No operator fatigue, rest and travel time in warehouses.

Precise Accuracy: With Barcode/RFID scanning, and computerized control, human error in putaway, picking and inventory is virtually eliminated delivering accuracy rates as high as 99.99%+.

Improved Safety: By eliminating forklifts and operators from high-traffic storage aisles accidents such as impacts with the rack and falls from heights are significantly decreased. Operators drive from safer staging areas.

Efficient Labor: Eliminates need for a lot people to do same work -storage,picking etc. Labour is re-assigned to higher-value tasks, such as order batching, QA and exceptions. Alleviates labour-shortage problems(reordered)

Advanced Stock Management: With real time, WMS-integrated tracking, monitoring stock levels and their locations has never been easier. Allows for accurate FIFO(First-In-First-Out) or FEFO(First-Expired-First-Out) control.

Less Product Downtime: Automatic handling is consistent and gentle which reduces potential product damage from being handled by a manual forklift.

Scalable & Flexible: New ASRS systems can be expanded in a modular form. Software Enablement – Software can implement storage policies according to fluctuating stock profiles and fulfillment orders.

Key Applications of asrs racking system:

ASRS racking systems stand out in high-throughput, precise, and space saving environments:

Cold Storage Facilities to optimize refrigerated/frozen facility and minimize exposure to brutal conditions for your workforce.

E Commerce Fulfillment Centers: Process high SKU counts and orders quickly and accurately.

Manufacturing & Raw Material Warehousing: Just-in-Time (JIT) and Just-in-Sequence (JIS) supply chains that need to access parts quickly and dependably.

Pharmaceutical & Medical Supply Distribution – tight traceability, accuracy, controlled condition needs.

High-Value Cargo Storage: Electronics, luxury items – when security and preventing damage is critical.

Beverage & food Distribution: High volume and many times FIFO demands kept in check effectively.

Implementation considerations:

In exchange for its muscle, ASRS racking is so pricey and requires so much planning:

CapEx: Higher upfront costs than with traditional racking and forklifts.

System Integration: Integration between WMS/WCS and ASRS equipment as well as other automation (such as conveyors, sorters) needs to be seamless.

Pre Design Planning: Carefully analyzing inventory profiles, flow rates, SKU dynamics and future growth predictions is vital to the design process.

Maintenance: The operating of the automatic equipment and programs depends on very specialized technical personal.

The Future is Automated:

ASRS racking systems are more than just another pallet racking solution, they lead to intelligent and data backed warehousing. As technology continues to evolve - robotics, predictive analytics, artificial intelligence for optimization, and machine learning -the ASRS will continue to become even more efficient, dynamic and approachable.
